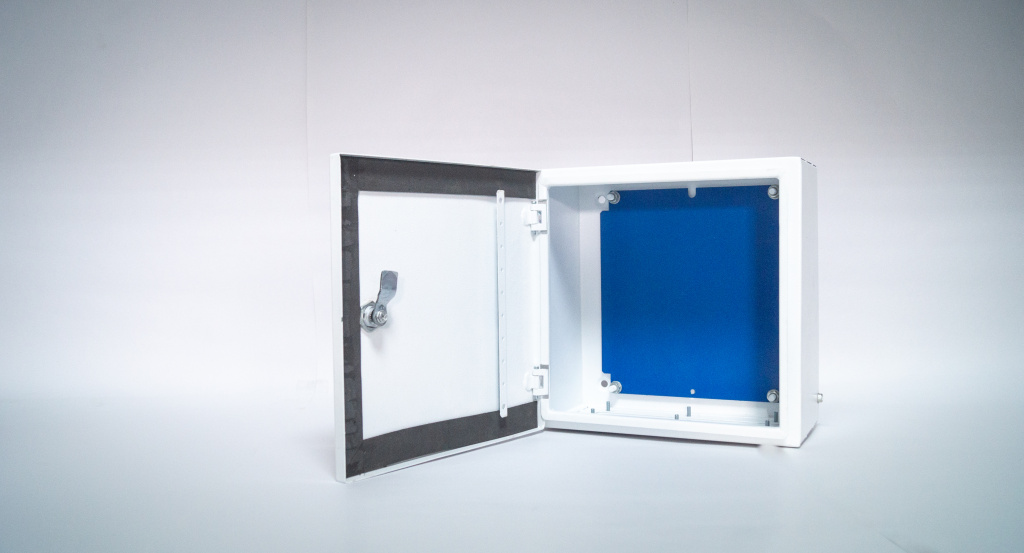

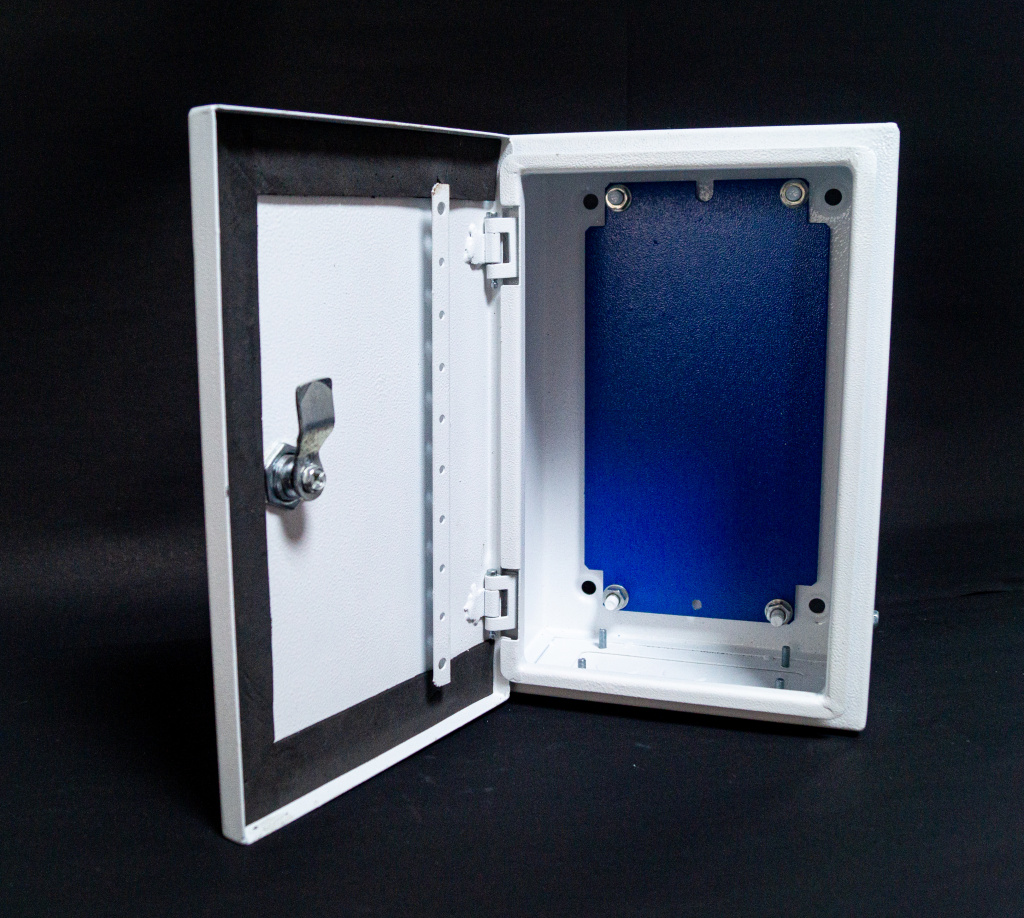

Material : Enclosure and Door with mounting plate – Sheet steel, all round gasket which makes IP66 protection. Surface Finish : Powder coating with phosphating protection, textured paint. Colour : RAL 7035 Supply Includes: Enclosure with hinged door (180 degree hinge) , Cam lock with 3mm double – bit insert.
Enclosure is an important piece of equipment for the safety of any electrical system. With the world on a technological growth spree, these protective enclosure is more important than ever. Electrophile's boxes are crucial in protecting electrical networks or complicated equipment in industries such as telecommunications, IT systems, and the Internet of Things (IoT), among many others. Not only can they save lives but also huge amounts of equipment and operating costs that may incur due to damages from external factors and subsequent system failures.
Depth : 80mm
|
Width(mm) |
150 |
150 |
200 |
200 |
200 |
200 |
300 |
300 |
|
Height(mm) |
150 |
300 |
200 |
300 |
400 |
500 |
300 |
400 |
|
Depth(mm) |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
|
Mounting Plate Width(mm) |
125 |
125 |
175 |
175 |
175 |
175 |
275 |
275 |
|
Mounting Plate Height(mm) |
135 |
285 |
185 |
285 |
385 |
485 |
285 |
385 |
|
Enclosure thickness(mm) |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
|
Door Thickness(mm) |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
|
Weight (Kg) |
2.0 |
3.0 |
2.8 |
3.6 |
5.0 |
6.2 |
5.0 |
6.4 |
|
Number of Locks |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
Depth : 120mm
|
Width(mm) |
150 |
150 |
200 |
200 |
200 |
|
Height(mm) |
150 |
300 |
200 |
300 |
400 |
|
Depth(mm) |
80 |
80 |
80 |
80 |
80 |
|
Mounting Plate Width(mm) |
125 |
125 |
175 |
175 |
175 |
|
Mounting Plate Height(mm) |
135 |
285 |
185 |
285 |
385 |
|
Enclosure thickness(mm) |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
|
Door Thickness(mm) |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
|
Weight (Kg) |
1.7 |
2.6 |
2.4 |
3.2 |
4.4 |
|
Number of Locks |
1 |
1 |
1 |
1 |
1 |
Depth : 155mm
|
Width(mm) |
300 |
300 |
300 |
|
Height(mm) |
400 |
600 |
800 |
|
Depth(mm) |
155 |
155 |
155 |
|
Mounting Plate Width(mm) |
275 |
275 |
275 |
|
Mounting Plate Height(mm) |
385 |
585 |
785 |
|
Enclosure thickness(mm) |
1.2 |
1.2 |
1.2 |
|
Door Thickness(mm) |
1.2 |
1.2 |
1.2 |
|
Weight (Kg) |
7.0 |
11.0 |
13.0 |
|
Number of Locks |
1 |
2 |
2 |
